Multirate signal processing is the study and implementation of concepts, algorithms, and architectures that embed sample rate changes at one or more places in the signal data flow. Multirate signal processing is a subset of Digital Signal Processing (DSP) as we primarily deal with sampled, discrete systems (rather than analog, continuous-time systems). The two main reasons to implement Multirate signal processing in a design are:

  1. Reducing the cost of design implementation
  2. Enhancing the performance of the implementation

Some of the common tenets of Multirate DSP are:

  • A processing task should always be performed at the lowest rate commensurate with the signal bandwidth (the Nyquist rate of the signal of interest (SOI))
  • To achieve the above, Multirate DSP often deals with interchanging traditional DSP processing stages, and accepting intentional aliasing, by use of the Noble Identity

For example, a common DSP task is to reduce the bandwidth of a sampled signal to isolate a SOI (e.x. using a low-pass filter (LPF)), and then reduce the sample rate to match the SOI’s bandwidth. However with the Noble Identity, we can reduce the sample rate first, and then perform the filtering at the lower sample rate (and often with a lower order filter compared to it processing at the higher sample rate). This intentional aliasing can be unwrapped by the subsequent Multirate processing. This powerful tool can even be used to intentionally alias a signal from one center frequency to another (e.g. from an Intermediate Frequency (IF) to baseband) while reducing sample rate.

from IPython.display import YouTubeVideo
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.pyplot import cm
from scipy import signal

from rfproto import filter, measurements, multirate, plot, sig_gen, utils

Sample Rate Conversion

Downsampling

Also known as decimation (though technically the “deci” was a historical term to “remove every tenth one”), downsampling is the process of reducing the sample rate of a system. To downsample by an integer factor MM, we can simply keep every MMth sample from an input stream, discarding the rest.

y[m]=x[n]n=mMfor n=0,1,2,N;m=0,1,2,NMy[m] = x[n]|_{n=mM}\quad \text{for } n=0,1,2,\cdots N;\quad m=0,1,2,\cdots \frac{N}{M}


f_start = 20e3
f_end = 25e3
fs = 100e3
num_samples = 16384

lfm_chirp_sig = sig_gen.cmplx_dt_lfm_chirp(1, f_start, f_end, fs, num_samples)
lfm_chirp_sig = lfm_chirp_sig.real + 1j*np.zeros(num_samples)

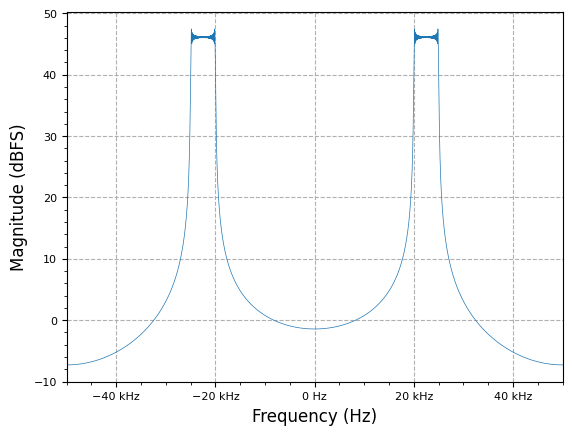

plot.spec_an(lfm_chirp_sig, fs, fft_shift=True, show_SFDR=False)
plt.show()

png

M = 4
y_ds = multirate.decimate(lfm_chirp_sig, M)

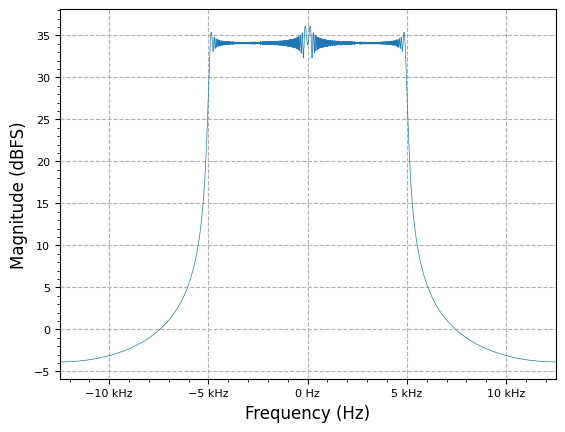

plot.spec_an(y_ds, fs/M, fft_shift=True, show_SFDR=False)
plt.show()

png

Upsampling

Upsampling is the opposite of downsampling and is the process of increasing the sample rate of a system. To upsample by an integer factor LL, we can insert L1L-1 zeros between every sample from an input stream.

y[n]=x[m]m=n/Ly[n] = x[m]|_{m=n/L}


f_start = -5e3
f_end = 5e3
fs = 100e3
num_samples = 16384

lfm_chirp_sig = sig_gen.cmplx_dt_lfm_chirp(1, f_start, f_end, fs, num_samples)

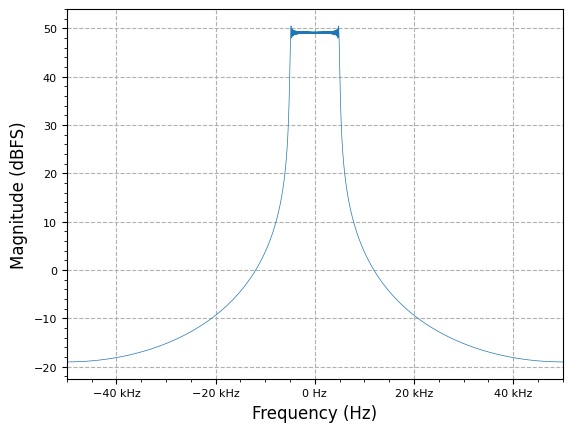

plot.spec_an(lfm_chirp_sig, fs, fft_shift=True, show_SFDR=False)
plt.show()

png

L = 4
y_us = multirate.interpolate(lfm_chirp_sig, L)

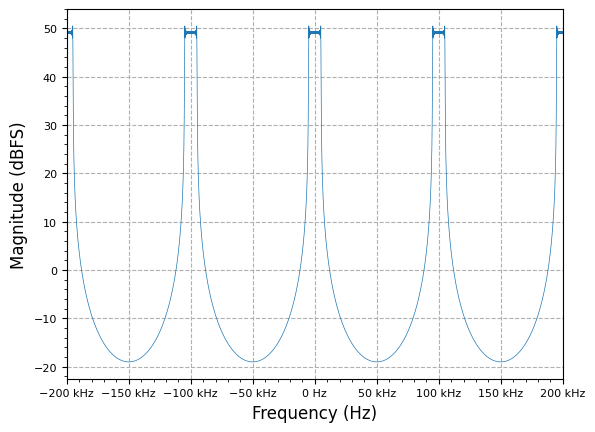

plot.spec_an(y_us, fs*L, fft_shift=True, show_SFDR=False)
plt.show()

png

Noble Identities

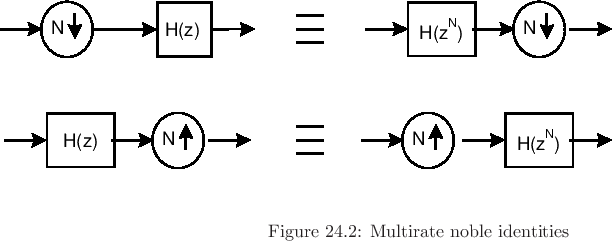

The noble identity in multirate DSP allows us to commute resampling operations. Since down and upsamplers are Linear Time-Varying (LTV) processes, the order of operations matter- moving a NN downsampler through a filter H(z)H(z) is equivalent to a filter H(zN)H(z^{N}) followed by the NN downsampling operation. The primary use of this identity is to allow processing of multirate functions (e.x. filtering) at the ideal/efficient sample rate:

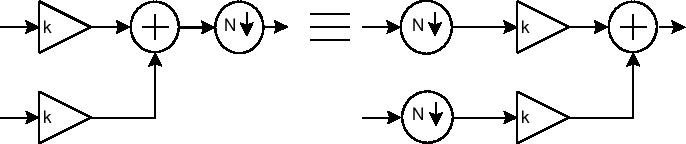

Memoryless operations (e.x. adders, multipliers) may be commuted across down and upsamplers as well:


From JOS

Polyphase Filtering

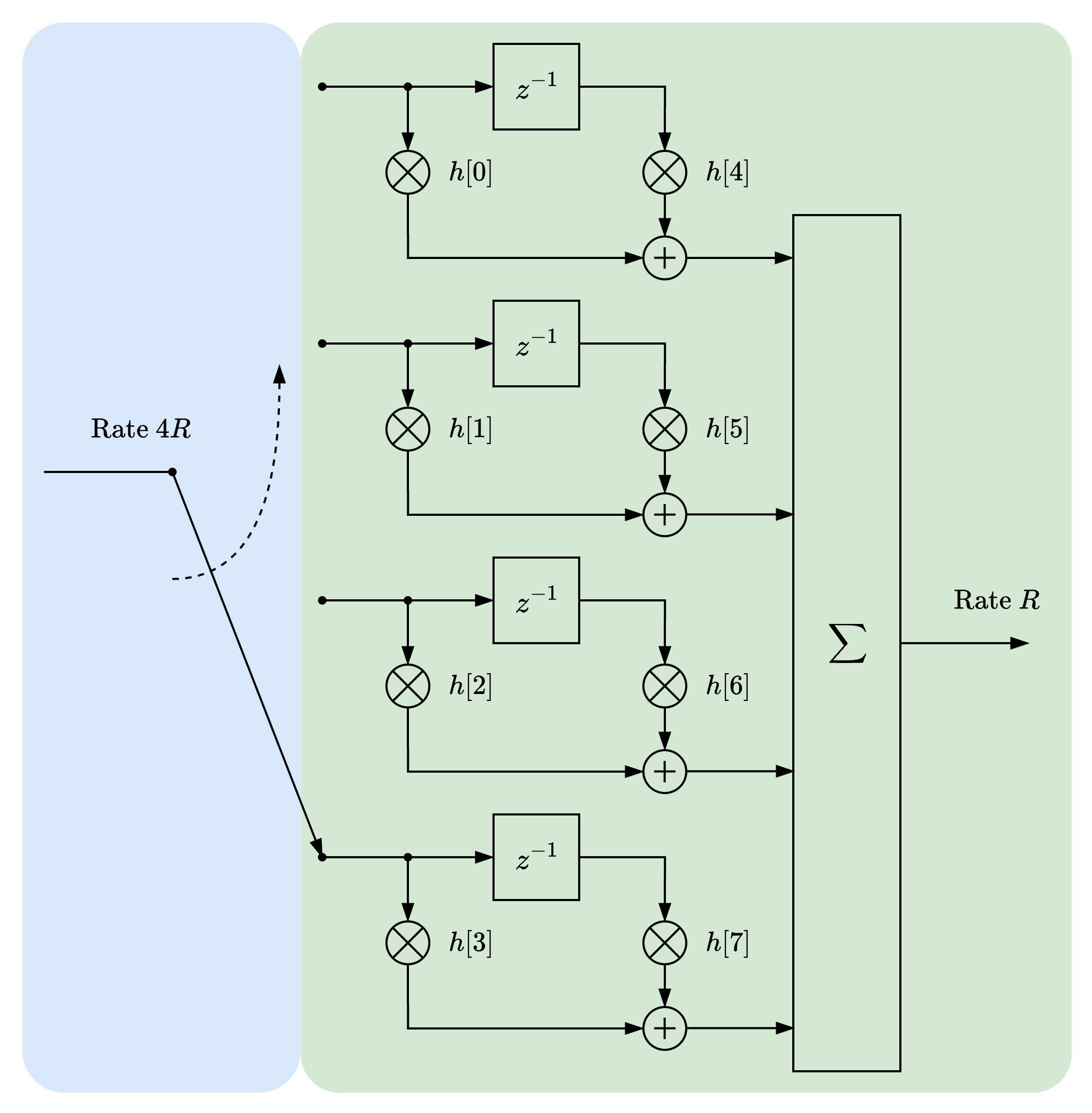

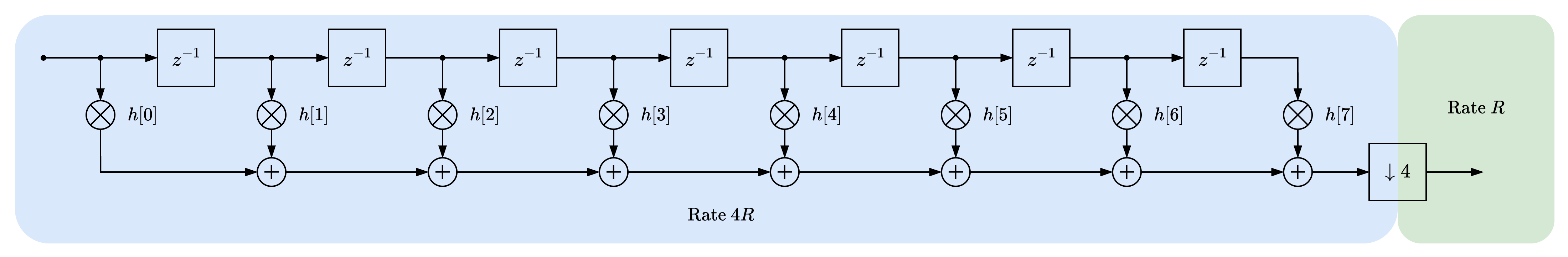

Polyphase Filters

M = 5
N = 10 * M # Number of filter taps
fs = 48e3 # sampling frequency (Hz)
w_delta = np.pi/20 # transition bandwidth
wp = ((np.pi/M) - w_delta)/np.pi # passband
ws = ((np.pi/M) + w_delta)/np.pi # stopband

# NOTE: vs MATLAB `firpm` which specifies band egdes from 0->fs,
#  scipy.signal.remez() uses bands 0->fs/2
taps = signal.remez(N, [0, wp*fs/2, ws*fs/2, fs/2], [1, 0], fs=fs)

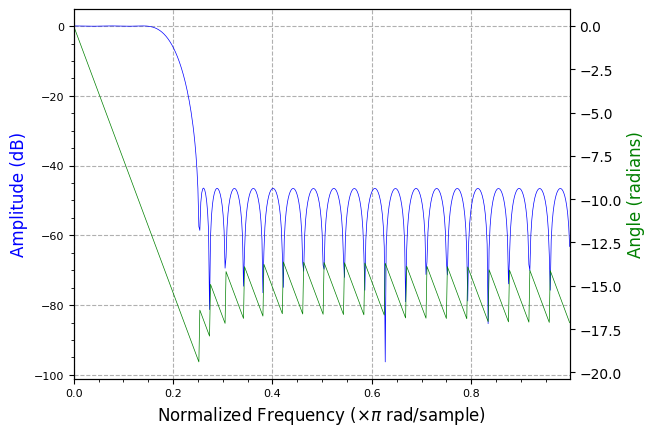

plot.filter_response(taps)
plot.plt.show()

pb_ripple, sb_atten = filter.measure_filter_response(taps, 0.0, wp, ws, 1.0)
print(f"Passband ripple: {pb_ripple:0.2f} dB | Stopband attenuation: {sb_atten:0.2f} dB")

png

Passband ripple: 0.08 dB | Stopband attenuation: -46.45 dB

h_poly = taps.reshape(len(taps)//M, M).T

# generate x indices
xi = np.zeros_like(h_poly)
color = iter(cm.rainbow(np.linspace(0, 1, M)))
for i in range(M):
    xi[i] = list(range(i, N, M))
    plt.stem(xi[i], h_poly[i], cm.viridis(i/M), label=f"h[{i}]")

plt.legend()
plt.show()

png

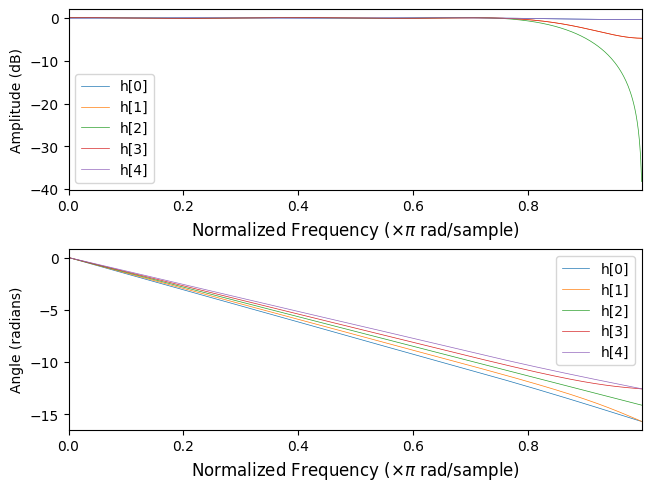

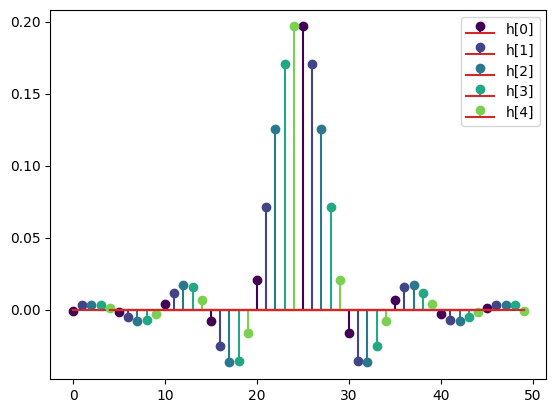

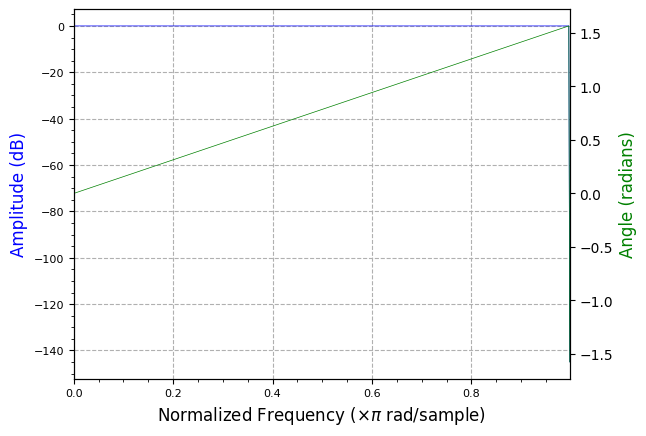

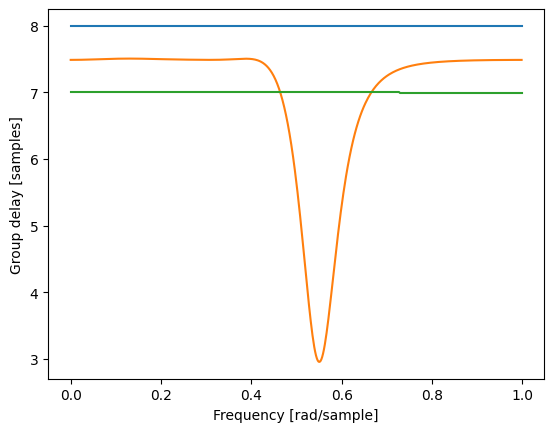

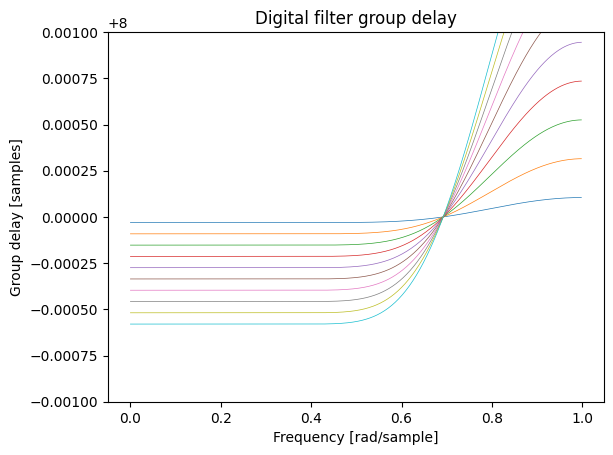

It can be seen that the response of each polyphase leg is allpass with linear phase from 0fs0 \rightarrow f_{s}.

fig, axs = plt.subplots(2, 1, layout='constrained')
for i in range(M):
    wi, hi = signal.freqz(h_poly[i])
    axs[0].plot(wi / np.pi, utils.mag_to_dB(M * hi), linewidth=0.5, label=f"h[{i}]")
    axs[1].plot(wi / np.pi, np.unwrap(np.angle(hi)), linewidth=0.5, label=f"h[{i}]")

axs[0].set_ylabel("Amplitude (dB)")
axs[0].set_xlabel(r"Normalized Frequency ($\times \pi$ rad/sample)", fontsize=12)
axs[0].margins(x=0)
axs[0].legend()
axs[1].set_ylabel("Angle (radians)")
axs[1].set_xlabel(r"Normalized Frequency ($\times \pi$ rad/sample)", fontsize=12)
axs[1].margins(x=0)
axs[1].legend()
plt.show()

png

f_start = 0
f_end = 0.1 * fs / 2.0
print(f"Passband from {f_start} -> {f_end} Hz")
num_samples = 100000

lfm_chirp_sig = np.real(sig_gen.cmplx_dt_lfm_chirp(1.0, f_start, f_end, fs, num_samples))
plot.spec_an(lfm_chirp_sig, fs, show_SFDR=False)
plot.plt.show()

Passband from 0 -> 2400.0 Hz

png

poly_filt_decim = multirate.polyphase_filter(M, taps * M, decimating=True)
poly_out = []
for x in lfm_chirp_sig:
    tmp_out, input_consumed = poly_filt_decim.step(x)
    if tmp_out is not None:
        poly_out.append(tmp_out)

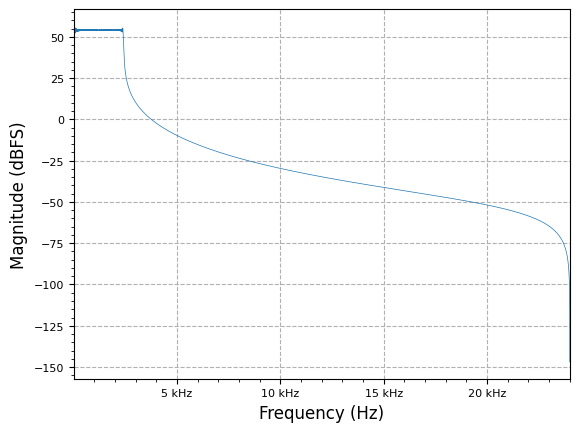

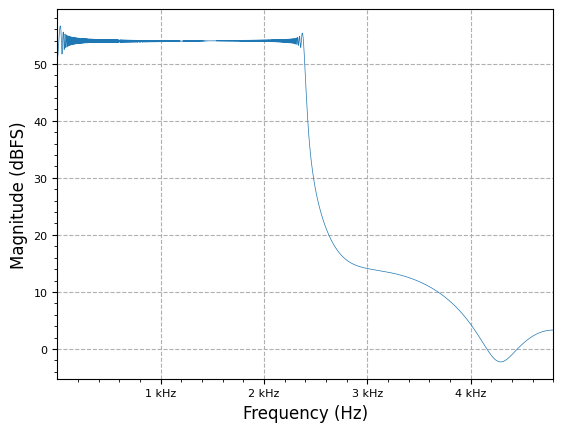

plot.spec_an(poly_out, fs/M, show_SFDR=False)
plot.plt.show()

png

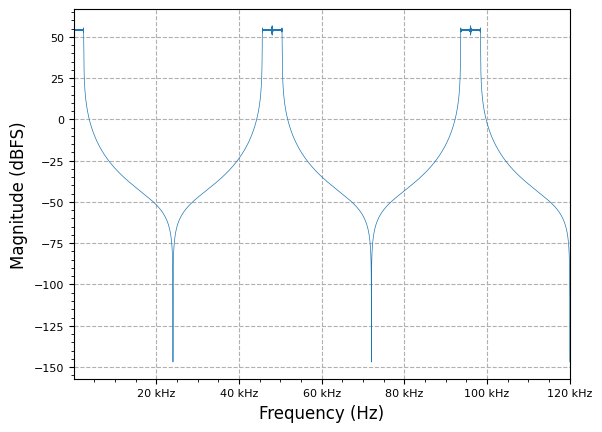

plot.spec_an(multirate.interpolate(lfm_chirp_sig, M), fs*M, show_SFDR=False)
plot.plt.show()

png

poly_filt_interp = multirate.polyphase_filter(M, taps, decimating=False)
poly_out = []
input_idx = 0
while input_idx < len(lfm_chirp_sig):
#for _ in range(24):
    tmp_out, input_consumed = poly_filt_interp.step(lfm_chirp_sig[input_idx])
    if tmp_out is not None:
        poly_out.append(tmp_out)
    if input_consumed:
        input_idx += 1

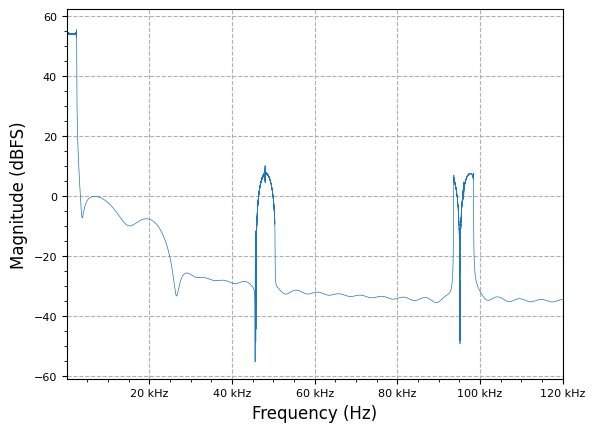

plot.spec_an(poly_out, fs*M, show_SFDR=False)
plot.plt.show()

png

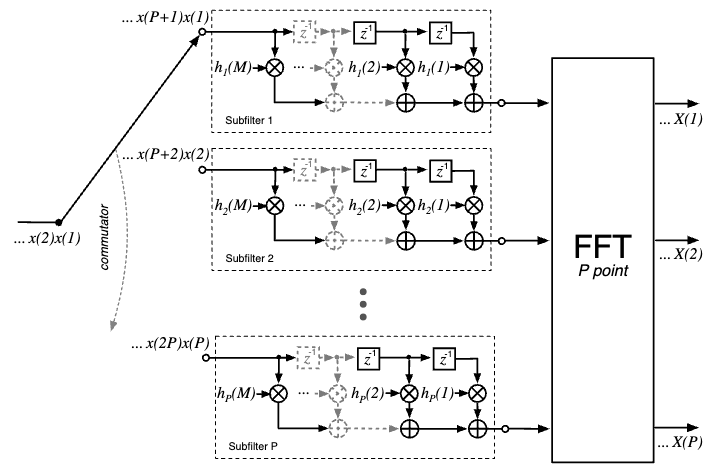

Polyphase Filter Banks (PFBs) and Channelizers


PFB References

YouTubeVideo('WRO9VD6MYy4')

Polyphase Filter References

YouTubeVideo('Zmjk9NE-3k0')
YouTubeVideo('afU9f5MuXr8')

Cascaded Integrator–Comb (CIC) Filter

Benefits:

  • Multiplier-free implementation for economical (light resource utilization) design in digital HW systems which can handle arbitrary, and large, rate changes.
  • High interpolation CIC filters can push very narrowband signals (e.x. TT&C ~2MS/s max) go to sufficient ADC/DAC sample rates (e.x. 125MS/s)
  • Data reduction to not have to pass as much data to/from the front end (e.g. having to push full sample bandwidth data to/from a remote radio head)

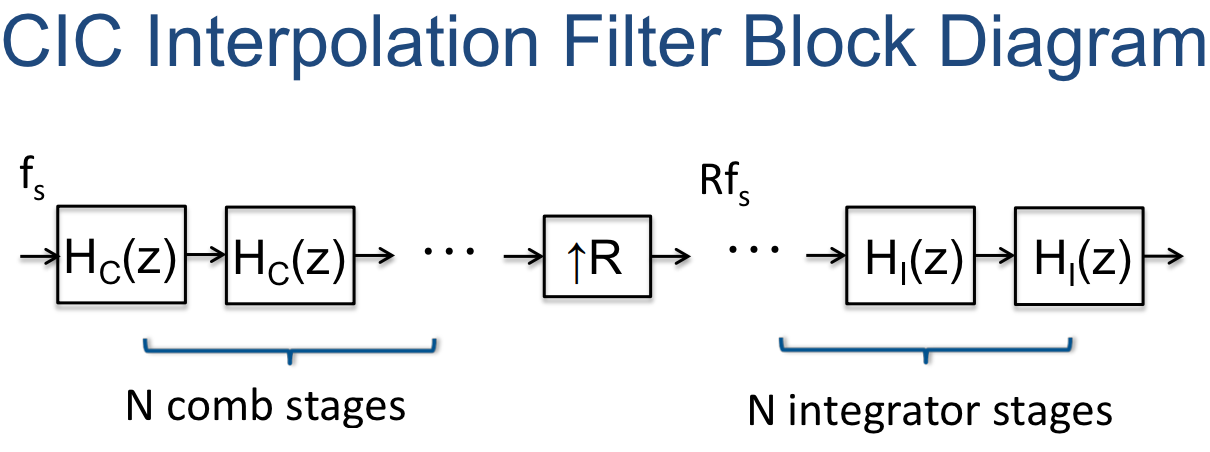

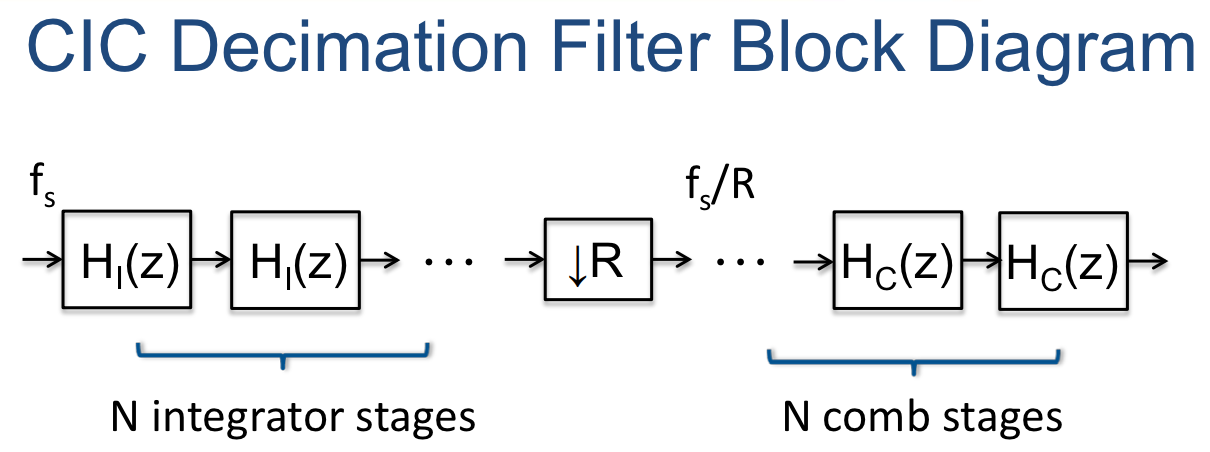

CIC filters can be used as decimation (decrease sample rate) and interpolation (increase sample rate) multirate filters:

The basic building blocks are NN integrator and NN comb sections (hence the name), along with an interpolator (e.g. zero-stuffing expander) or decimator, increasing or decreasing the output sample rate by RR times (respectively).

Integrator Section

An integrator is simply a single-pole IIR filter with unity feedback coefficient:

y[n]=y[n1]+x[n]y[n] = y[n-1] + x[n]

This is also commonly known as an accumulator, which has the zz-transform transfer function of:

HI(z)=11z1H_{I}(z)=\frac{1}{1 - z^{-1}}

The power response is basically a low-pass filter with a −20 dB per decade (−6 dB per octave) rolloff, but with infinite gain at DC. This is due to the single pole at z = 1; the output can grow without bound for a bounded input. In other words, a single integrator by itself is unstable. - CIC Filter Introduction - Matthew P. Donadio (DSP Guru)

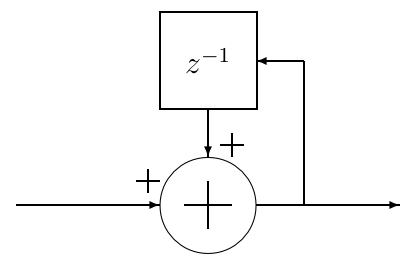

Note the pipelined version of the integrator which allows for more efficient digital hardware implementation (only one added between register stages):

Comb Section

The comb filter runs at the highest sample rate, fC=RfIf_{C} = R*f_{I}, in either decimation or interpolation filter form. It looks opposite of an integrator section as it subtracts the current sample value from a value MM sample periods prior; MM is the differential delay design parameter, and is often limited to M=1M = 1 or M=2M = 2:

y[n]=x[n]x[nRM]y[n] = x[n] - x[n - RM]

The corresponding transfer function at fsf_{s} is:

HC(z)=1zRMH_{C}(z) = 1 - z^{-RM}

When R=1R=1 and M=1M=1, the power response is a high-pass function with 20dB per decade gain (inverse of the integrator response). When RM1RM \neq 1, the power response looks like a familiar raised cosince form with RMRM cycles from 02π0 \rightarrow 2\pi.

Bit Growth

Due to the cascaded adders/subtracters in the CIC filter, each fixed-point, two’s complement arithmetic operation requires an additional bit of output than input, to prevent loss of precision. Given an input sample bitwidth of BinB_{in}, the output bitwidth required can be found to be:

Bout=Nlog2RM+BinB_{out} = \lceil N\log_{2}RM + B_{in} \rceil

At the expense of added quantization noise, bit growth can be controlled by rounding/scaling at some points within the CIC stages.

#TODO:

  • Look at the fred harris paper on multiplier-less CIC with sharpening that doesn’t need compensation FIR
    • Also mentioned in https://www.dsprelated.com/showarticle/1337.php
  • For bit growth, look at CIC filter register pruning
    • Also shown in http://www.jks.com/cic/cic.html and https://github.com/jks-prv/cic_prune

Discrete-Time Test of CIC

f_start = 0
f_end = 5e3
fs = 100e3
num_samples = 100000
bit_width = 16

lfm_chirp_sig = np.real(sig_gen.cmplx_dt_lfm_chirp(2**(bit_width-5), f_start, f_end, fs, num_samples))
freq, y_PSD = measurements.PSD(lfm_chirp_sig, fs, norm=True)

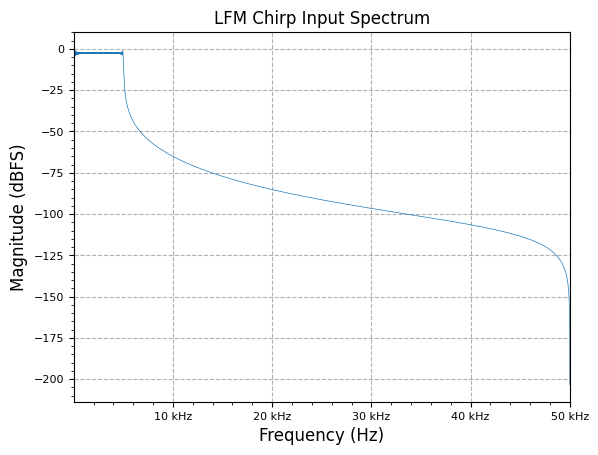

plot.freq_sig(freq, y_PSD, "LFM Chirp Input Spectrum", scale_noise=False)
plt.show()

png

N = 3 # number of stages
R = 8 # interp/decim factor
M = 1 # differential delay in comb stages

cic_bit_width = 21 # np.ceil(N * np.log2(R*M) + bit_width)

integ_stages = [multirate.integrator(cic_bit_width) for i in range(N)]
comb_stages = [multirate.comb(M) for i in range(N)]

integ_out = np.zeros(len(lfm_chirp_sig))
for i in range(len(integ_out)):
    temp_val = int(lfm_chirp_sig[i])
    for j in range(N):
        temp_val = integ_stages[j].step(temp_val)
    integ_out[i] = temp_val

decimate_out = multirate.decimate(integ_out, R)

cic_out = np.zeros(len(decimate_out))
for i in range(len(cic_out)):
    temp_val = decimate_out[i]
    for j in range(N):
        temp_val = comb_stages[j].step(temp_val)
    cic_out[i] = temp_val

freq, y_PSD = measurements.PSD(cic_out, fs / R, norm=True)

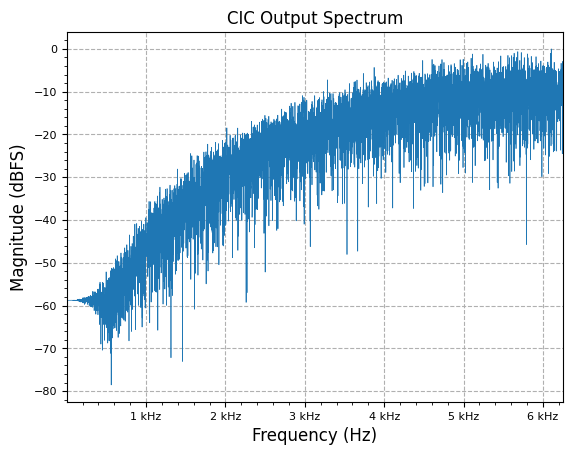

plot.freq_sig(freq, y_PSD, "CIC Output Spectrum", scale_noise=False)
plt.show()

png
